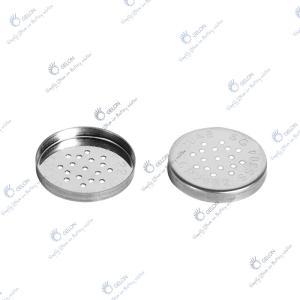

Silvery White Lithium Ion Battery Material CR20XX Coin Cells Cases

Name: Silvery White Lithium Ion Battery Material CR20XX Coin Cells Cases
Brand: Gelon
Price: 0.25 USD

Wholesale Silvery White Lithium Ion Battery Material CR20XX Coin Cells Cases from china suppliers

Brand Name : Gelon

Model Number : CR2016 CR2025 CR2032 CR2430 CR2450

Certification : Ce

Place of Origin : China

MOQ : 100 Sets

Price : USD0.25/Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 bags/week

Delivery Time : 5-8work days

Packaging Details : Standard Export Packaging.

Product name : Coin Cell Case

Dimension : CR2032 20*3.2mm

Material : 304SS/316SS/Aluminium

Color : Silvery White

Sealing Gasket : PP

Thickness of case : 0.25±0.02mm

Package : Package

Application : Lithium Battery Raw Material

Contact Now

Lithium Battery Material CR20XX Coin Cells Cases

1. Product Description

It is made of 304 or 316 stainless steel with sealing o-ring, including CR2016,CR2025,CR2032,CR2430,CR2450, etc； and we also have a coin cell case with Aluminum coated on the inside of the positive can.

Material:

Casing: SS304 or SS316 or Aluminium,

Sealing Gasket: PP

The thickness of the SS304/316 for both anode and cathode cases is 0.25mm+/-0.02mm.

2. Product Parameters

 	 			Dimensions (Dia x Height)
mm x 3.2 mm

 			Weight
71g

 			Materials
Casing: SS304 or SS316
Sealing Gasket: PP
The thickness of the SS304/316 for both anode and cathode cases is 0.25 mm +/- 0.02 mm.

 			Application Note
After perfectly crimping, the External Height should be around 3.0mm.
The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.
Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs,
 			and use Oven to dry for serval hours, (please set the oven to 30C, if it has ORING.)

Product Details

Related Products

Packaging&Shipping

Company Profile

FAQ

Product Tags:

316SS Lithium Ion Battery Material

CR20XX Coin Cells Cases

304SS Lithium Ion Battery Material

Silvery White Lithium Ion Battery Material CR20XX Coin Cells Cases Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shandong Gelon Lib Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Dimensions (Dia x Height)	20 mm x 3.2 mm
Weight	1.71g
Materials	1.Casing: SS304 or SS316 2. Sealing Gasket: PP 3. The thickness of the SS304/316 for both anode and cathode cases is 0.25 mm +/- 0.02 mm.
Application Note	1. After perfectly crimping, the External Height should be around 3.0mm. 2. The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm. 3. Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use Oven to dry for serval hours, (please set the oven to 30C, if it has ORING.)
