Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Research

Product Categories

Shandong Gelon Lib Co., Ltd

Contact Now

Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Research

Name: Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Research
Brand: Gelon
Price: 1500 USD

Wholesale Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Research from china suppliers

Brand Name : Gelon

Model Number : GN-MR-100H

Certification : CE

Place of Origin : China

MOQ : 1/PCS

Price : USD 1500-3000/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 PCS Per Month

Delivery Time : 4-6 week

Packaging Details : Wooden Carton

Rated Capacity : 2000W

Welding Thickness : Max 3mm

Welding Materials : Nickel, Steel Strips

Max Welding Speed : 3000PCS/

Air Source : 0.4-0.6MPa

Welding Area : 500*400mm

Max Loading Battery Quantity : Y-Axis:20PCS*Z Axis:

Welding Nickel Strip Thickness : 0.1mm-0.3mm

Contact Now

Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Making Research

Mainly for battery materials in the laboratory, a small amount of gold and silver and other precious metals adjustable, copper and aluminum and other nonferrous materials under certain temperature electric hot rolling, rolling thickness, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.

Roll diameter	2-Φ96mm
Rolls finish	more than 0.8
Cylindrical roller	≤ ± 2um
Rolling thickness	0 ~ 2mm gap can be adjusted
Rolling width	0 ~ 100mm
Rolling temperature	100 ºC adjustable digital display value
Voltage and frequency	AC220V / 50Hz
Feed rate	0 ~ 40mm / s, the speed can be adjusted
Dimensions	L850mm * W350mm * H550mm

Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Research

Main Features

* Heating rolling, adjustable thermostat temperature control and digital display.
* Optional with or without heating to work.
* Roll hardness, and surface hard chrome plated, hardness up to HRC62 and rust.

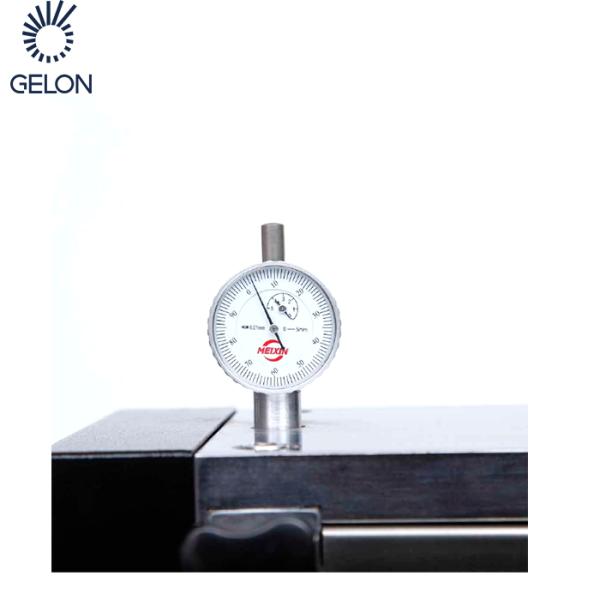

* Use the ramp to adjust compression gap, since petty good, high precision adjustment.
* Rolling high precision cylindrical roller ≤±2um.
* The use of gear rotation, to achieve the roll repression.
* Tablet thickness, the speed can be adjusted, exquisite appearance.
* Electric rolling, forming automated, reversing operation.
* Small size, easy to operate, flexible and quick.

Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Research

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request. Lab Desktop Battery Electrode Manual Roller Pressing Machine Battery Research
